Denon PMA-520AE 70W Amplifier

Loading reviews...
  • Denon PMA-520AE 70W  Amplifier - Jamsticks

Denon PMA-520AE 70W Amplifier

Loading reviews...
Add to Wishlist

Brand Warranty as Applicable, Usually delivered in 2-8 Business days

  • Denon PMA-520AE 70W Amplifier

    Product Description:

    Designed for European ears
    At the heart of this European sound-tuned amplifier are features to create a dynamic and well-balanced sound. High-current transistors and a high-capacity power supply circuit give the Denon PMA-520AE a powerful, punchy sound, while clean, short signal paths and improvements to the volume circuitry help it sound precise and articulate. The fully discrete amplifier stage and separate analogue power supply ensure fine detail is faithfully reproduced and distortion is kept to a minimum.

    Vibration-resistant design
    With its solid metal casing and large, anti-vibration feet, the
    Denon Amplifier PMA520AE is well equipped to resist sources of mechanical interference. The aluminium front panel helps reduce electrical interference, especially from sources such as light dimmers and fluorescent bulbs. As you'd expect from Denon, the quality of finish is impeccable, with smooth edges, solid construction and well-damped controls.

    Plenty of features

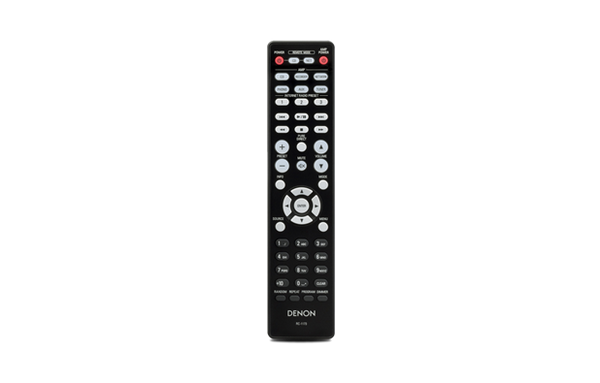

    Despite its focus on sound quality, the Denon Amplifier PMA520AE still has more than enough features. For those with record decks, there's a built-in phono stage, plus four line level inputs and a recording in/out loop. Tone controls, a headphone socket and a system remote control makes up a strong spec.

    With its smooth, powerful sound, unrivalled construction quality and useful range of features, it's hard not to see how the Denon Amplifier PMA520AE could be anything other than another impressive budget Denon amp - a tough act to follow.


    Power amplifier section

    • Rated output: 70 W + 70 W (4 ohms, 1 kHz, THD 0.7%), 45 W + 45 W (8 ohms, 20 Hz - 20 kHz, THD 0.07%)
    • Total harmonic distortion: 0.02% (8ohms, 1 kHz)

    Preamplifier section

    • Phono equalizer rated output: 150 mV (REC out terminal)

    Input sensitivity / Impedance

    • Line: 100 mV/47 kohms (Source Direct: OFF), 100 mV/16 kohms (Source Direct: ON)
    • Phono: 2.5 mV/47 kohms

    RIAA deviation

    • Phono: 20 Hz - 20 kHz, ±0.5 dB

    Signal-to-noise ratio (IHF A network)

    • Line: 105 dB (Source Direct: ON)
    • Phono (MM): 84 dB

    Tone controls

    • Bass: 100 Hz, ±8 dB
    • Treble: 10 kHz, ±8 dB


    • Power supply: AC 230 V, 50/60 Hz
    • Power consumption: 185 W (Standby: less than 0.3 W)
    • Dimensions (W x H x D): 434 x 121 x 307 mm
    • Weight: 6.8 kg

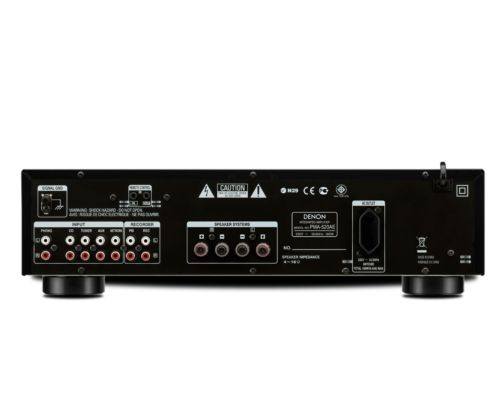

    • IN
      - Phono (MM) x 1
      - CD x 1
      - Tuner x 1
      - Line x 1
      - Recorder (Playback) x 1
    • OUT
      - Recorder (REC) x 1
    • OTHER
      - AC outlet x 1

    All eligible company warranty and service support is being provided on Denon PMA-520AE 70W Amplifier.
