Yamaha YSP-4300 Soundbar
Slim, High Sound Quality Digital Sound Projector and Wireless Active Subwoofer deliver exceptionally high surround sound performance, with wireless music streaming and USB digital connection.

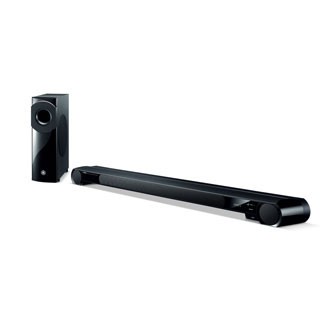

- The combination of a high sound quality design soundbar and specially tuned Wireless Active Subwoofer
- The truly high sound quality design soundbar with 22 array speakers and powerful Woofers
- Wireless Subwoofer with Advanced YST technology reproduce rich and powerful bass
- Using the YIT-W12(option) you can also enjoy music with high sound quality wirelessly
- Digital sound projector technology reproduces true surround sound
- IntelliBeam automatically sets the optimum sound field
- HDMI (4 in/1 out) with 4K Pass-Though, 3D and CEC functionality
- 40-station preset FM tuner
- Low style design for easy positioning in front of a TV
- Wireless Active Subwoofer allows flexible placement
- USB Digital Connection for iPod/iPhone/iPad and USB devices
- TV Remote Repeater for Signal Transmission
Truly High Sound Quality Design Soundbar Reproduces Realistic Sound
The soundbar uses 22 array speakers controlled by Yamaha's YSP technology to produce sharp beams for extremely high quality surround sound. Two powerful 6.5cm woofer units in the large cabinet also help to improve sound quality. The aluminium body dampens unwanted vibrations. The result is a sound field filled with presence for a superior surround sound feeling and outstanding imaging.

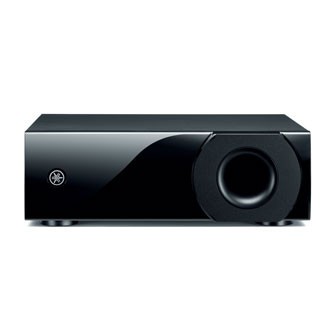

Wireless Subwoofer with Advanced YST Technology Reproduce Rich and Powerful Bass
The subwoofer has a large 16cm driver and uses Yamaha's exclusive Advanced YST technology to produce clear, powerful bass. The circuit board has an ideal grounding pattern that ensures stable current supply. The Linear Port improves sound dispersion and is designed to minimise unnecessary noise. Both music and movie sound effects are reproduced with an astounding sense of presence.
Wireless Streaming with High Sound Quality from iPod/iPhone/iPad or Mac/PC
The optional YIT-W12 Wireless Transmitter, used with the YSP-4300, lets you enjoy music wirelessly from your iPod/iPhone/iPad or Mac/PC. Yamaha-developed AirWired technology provides uncompressed linear PCM transmission for consistently clear, accurate sound output.
Digital Sound Projector Technology Reproduces True Surround Sound
The YSP-4300 achieves true (not virtual) surround sound by producing beams of sound and using advanced processing to control their directions. You hear perfectly realized 7.1-channel surround sound with natural ambience and optimum imaging. Yamaha technology also provides the additional benefits of a wide "sweet-spot" listening area and the elimination of listening fatigue.
Versatile Listening Modes Which Can Be Chosen According to Contents
The YSP-4300 achieves true surround sound by directing sound beams off the walls to reach the listener from various angles. The main mode is 5 BeamPlus2 for 7-channel sources. In addition, there is a wide variety of other listening modes. You can select 3 BeamPlus2 + Stereo, 5 Beam,Stereo + 3 Beam, 3 Beam, Stereo, Target mode and My Surround.
HD Audio Format Decoding
The YSP-4300 decodes HD Audio signals to ensure that you hear the best possible sound from Blu-ray Disc players, as well as from all other digital sources.
10 CINEMA DSP Programmes
Yamaha‚¬„s ultra-sophisticated CINEMA DSP technology creates thrillingly realistic soundscapes in any room. You can select 10 different programmes, including three Movie, three Music and four Entertainment programmes.
IntelliBeam Automatically Sets the Optimum Sound Field
This Yamaha exclusive feature ensures optimum multichannel sound reproduction with accurate image location. By monitoring and analysing the sound with the microphone included with the YSP-4300, IntelliBeam automatically sets the best beam angles, while optimising the level and frequency response of each beam. This makes initial setup both extremely simple and acoustically perfect.
HDMI (4 in/1 out) with 4K Pass-Through and 3D
Four HDMI inputs mean you can connect four high quality digital sources, each with just a single cable. Two additional HDMI benefits are 4K Passthrough, which allows the transmission of nextgeneration super high resolution images, and 3D, for the transmission of 3D video.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. This function restores what was lost, so your music always sounds the way it should.
Other Notable Features
‚¬ UniVolume maintains the same volume level
‚¬ 40-station preset FM tuner
Low Style Design for Easy Positioning in Front of a TV
Only 86mm high, the YSP-4300 can easily be placed in front of your TV without blocking the screen. The height can be adjusted in two levels by adding the spacers. It is also wall mountable (brackets optionally available).
Design Imparts a Strong Feel of Luxury to Create a High Quality Space
The top surface of the soundbar is made of aluminium with superior stiffness, high texture and a hairline finish, for a look that is stylish and imparts a strong feel of luxury. The sides have a mirror finish that harmonises beautifully with the TV. Available in either black and silver, so you can choose the color that best matches your TV.

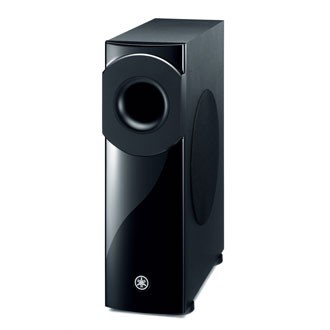

Wireless Active Subwoofer Allows Flexible Placement
The subwoofer eliminates the need to connect cables, so setup and placement are faster and easier. The fact that it can be used in either a horizontal or a vertical position provides additional flexibility. This is a convenient subwoofer that delivers powerful, high quality bass sound.
USB Digital Connection for iPod/ iPhone/iPad on the Front Panel
A USB terminal on the front panel makes it quick and easy to plug in your iPod, iPhone or iPad to enjoy stored music. The digital connection ensures that there is no data loss, maintaining optimum sound quality. When connected, the iPod, iPhone or iPad will charge even when the YSP-4300 is in standby mode.
USB Port for Direct Access to MP3 or WMA Tracks on USB Devices
USB Port for Direct Access to MP3 or WMA Tracks on USB Devices USB Port for Direct Access to MP3 or WMA Tracks on USB Devices.
HDMI CEC Functionality
When connected to a CEC-compatible TV, such as a Panasonic VIERA Link TV, the YSP-4300 will turn on and off together with the TV, and you can use the TV remote unit to control the volume. CEC also provides advanced functionality with other components.
TV Remote Repeater for Signal Transmission
Even if the YSP-4300 blocks the TV‚¬„s remote control signal, the TV Remote Repeater on the back transmits the signal to the TV so operation is not affected.
Other Notable Features
‚¬ Memory function for recording up to three of your favourite settings
‚¬ ECO Mode for energy conservation
‚¬ Easy-to-see On Screen Menu viewable in nine languages
‚¬ Custom installation functions : Extended IR, RS-232C (RJ 12)
‚¬ Optional accessory: SPM-K20 Wall Mount Bracket for wall mounting
Front Surround System
General Output Channel 7.1-channel Output Power 324W total power: 2W x 22 beam drivers + 75W x 2 (woofer) + Dynamic 130W subwoofer Power Consumption (Centre Unit) 60 W, (Subwoofer) 70 W Standby Power Consumption (Centre Unit) 0.5 W (HDMI Control off, Wireless interlock off) Beam Drivers 2.8 cm x 22 beam drivers Woofers Dual 6.5 cm woofers Subwoofer 16 cm cone woofer with Advanced YST(vertical/holizontal) Dimensions (W x H x D) 1,102 x 86 (with spacer: 99.5) x 161 mm (Centre unit), 145 x 446 x 371 mm (Vertical) (Subwoofer) Weight 6.9 kg (Centre unit), 9 kg (Subwoofer) Input / Output HDMI 4 in / 1 out Digital Optical 2 in Digital Coaxial 1 in Analog Audio 1 in HDMI 4K Pass-through Yes Deep Color Yes x.v.Color Yes 3D Pass-through Yes ARC Yes CEC Yes Auto Lip-Sync Yes Sound Technology Surround Technology Digital Sound Projector CINEMA DSP Movie 3 (Sci-Fi, Adventure, Spectacle) CINEMA DSP Music 3 (Concert, Juzz Club, Music Video) CINEMA DSP Entertainment 4 (Sports, Talk Show, Drama, Game) Listening Mode 5Beam, 5Beam Plus2, Stereo+3Beam, Stereo+3Beam PLUS2, 3Beam, Stereo, Target and My Surround UniVolume Yes Compressed Music Enhancer Yes Audio Formats HD Audio Format Decoding Yes Dolby TrueHD Yes Dolby Digital Plus Yes Dolby Digital Yes Dolby Digital EX Yes Dolby Pro Logic Yes Dolby Pro Logic II Yes Dolby Pro Logic IIx Yes DTS-HD Master Audio Yes DTS-HD High Resolution Yes DTS Yes DTS-Neo 6 Yes DTS-ES Yes DTS 96/24 Yes LPCM Yes Connectivity Wireless Subwoofer Yes Wireless Compatibility via Yamaha Wireless Transmitter Yes (iPod/iPhone/iPad or Mac/PC via optional YIT-W12) AirWired Yes USB Yes (iPod/iPhone/iPad, USB Memory, Portable Audio Player) Tuner FM Tuner Yes Other Features IntelliBeam Yes On-Screen Display Yes On-Screen Display Languages English, German, French, Spanish, Italian, Russian, Dutch, Swedish and Japanese ECO Mode Yes Other Features TV Remote Repeater, Learning function Accessories (Optional) Wall Mounting Bracket SPM-K20
