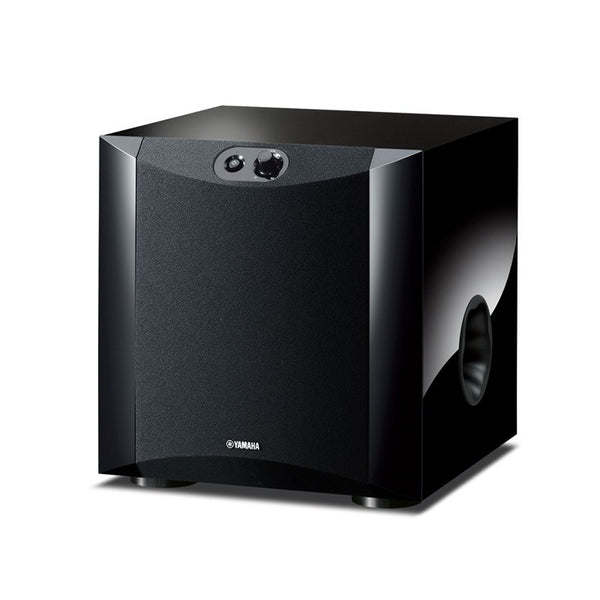

Yamaha Subwoofer NS-SW200 28-200 Hz 130W Powered Subwoofer
A design combining superior operability and beauty. And introducing a new technology, Twisted Flare Port, for clear and tight bass. Yamaha Subwoofer will match a wide range of speakers and interiors.
New Twisted Flare Port Produces Clear and Tight Bass
The all-new Twisted Flare Port takes advantage of extensive Yamaha subwoofer development experience. The flared, gently twisting shape diffuses the vortex of air generated around the edge of the port, creating a smooth flow of air. This reduces extraneous noise not present in the original input signal and provides clear, accurate low frequency reproduction. From special effect sounds in movies to the atmosphere of a live venue, you hear bass that is clear, tight and realistic.
Twisted Flare Port Movie
PWM Digital Drive High Efficiency Amplifier and Dual Feedback Circuit
The built-in power amplifier pof the Yamaha Subwoofer delivers stable power output of 130 W with high efficiency while minimizing power consumption and heat production. It does not require an output filter coil, resulting in extremely low noise and distortion. High speed transient response is also excellent. The dual feedback circuit reduces distortion by applying feedback twice, resulting in higher sound clarity.
Advanced YST II for Awesome Deep Bass
Developed by Yamaha, the Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone with even tighter control than the previous version. Using Advanced Negative Impedance Converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain excellent linearity. This means more stable and accurate low range response, not to mention higher sound quality.

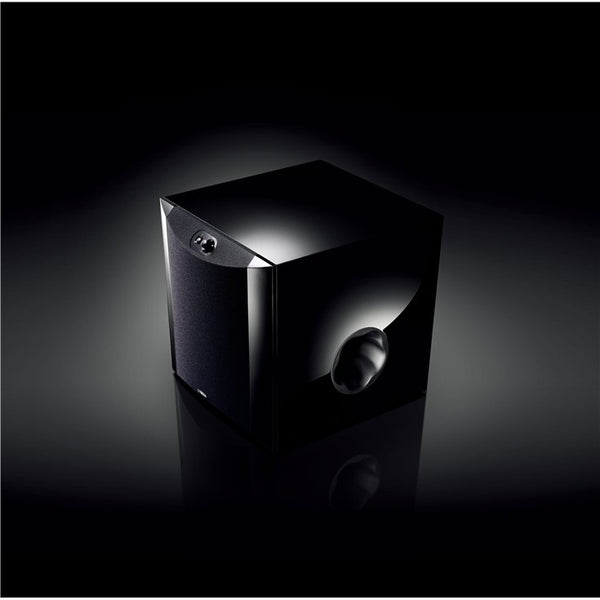

Beautiful Design that Will Match a Wide Range of Speakers and Interiors
In addition to the beautifully round shape of the front surface, panels on both sides to create an accent, and a neat appearance, this Yamaha subwoofer lets you imagine the strength of sound and matches a wide range of speaker systems. Numerous color variations are provided, so you can select one matched to your interior.
Front Control Panel for Easy Operation
The power and volume buttons, which are used most often, are laid out on the front surface of the unit for ease of access. It is inclined at an angle of 45°, making it easy to use even when placed on the floor. An LED indicator is above the power button, so even in a dimly lit room it's easy to tell if it's on or off.
System Control and Auto Standby
The system control terminal can be linked to the amplifier power to automatically turn the power on and off. There is also an Auto Standby Function: If no signal is input from the amplifier for a fixed period, it automatically switches to the standby state, and when a signal from the amplifier is detected, power turns on automatically. This limits the wasteful consumption of electricity.
Other Notable Features
- Low standby power consumption of 0.3w
- Auto standby switch / sensitivity selector (high,low and end)
- phase control (normal or reverse)
NS-SW200 Subwoofer Driver 20 cm (8”) cone Output Power 130 W Frequency Response 28–200 Hz Advanced YST Yes High-Efficiency Power Amplifier Yes Twisted Flare Port Yes Auto Standby Yes Standby Power Consumption 0.3 W System Connector Yes Dimensions (W x H x D) 290 x 306 x 351 mm; 11-3/8” x 12” x 13-7/8” Weight 11.2 kg; 24.7 lbs.
All eligible warrenty is applicable on Yamaha Subwoofer NS-SW200 28-200 Hz
