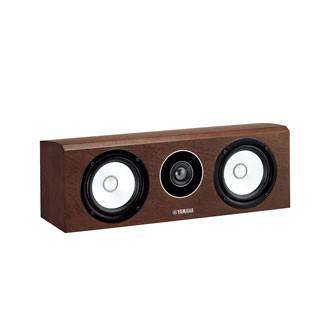

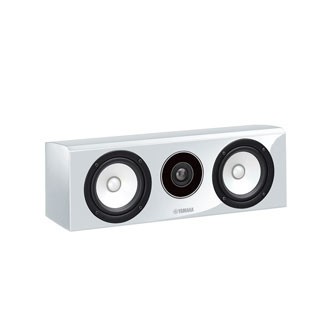

Yamaha NS-C700 Center Speaker
NS-C700 Centre Speaker

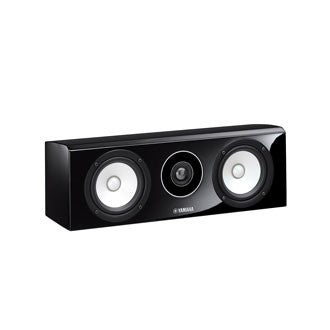

Designed to deliver live-sounding music reproduction, with full-range clarity and dynamic bass. Available with the same elegant Piano Black finish as Yamaha grand pianos.
- 2-way acoustic suspension speaker system for centre channel
- Advanced PMD cone woofers
- Aluminium dome tweeter with DC-Diaphragm
- Three-way mitered-joint construction
The Design Is Innovative, the Sound Is Dynamic, Vivid and ‚¬œLive‚¬?
NS-700 speakers deliver sound that is so dynamic and vivid, it seems live. One of the main reasons for this is the nonparallel design of the cabinets. In designing them, the Yamaha speaker team aimed to maximise sound clarity and imaging, while minimising internal standing waves. They succeeded with a rounded top panel that helps to reduce vertical standing waves, and a trapezoidal shape that serves to reduce the horizontal ones. The result is a very natural, expansive sound, making the NS-700 speakers excellent for both multi-channel music of any genre and home theatre use.
A-PMD Woofer and Midrange Cones
Yamaha‚¬„s exclusive A-PMD (Advanced Polymer-injected Mica Diaphragm) cones are extremely light, rigid and sturdy thanks to the use of a low specific gravity material called PMP (Poly-Methyl-Pentene) that is much lighter than polypropylene. It provides very fast response time (sound rise and fall), as well as excellent midrange clarity and bass response. Outstanding internal loss characteristics decrease unwanted resonances to achieve the smooth frequency response that results in natural sounding vocals.
Aluminium Dome, DC-Diaphragm Tweeter
The high-performance 3cm (1-1/8‚¬?) tweeter features a dome made of aluminium, with Yamaha‚¬„s DC-Diaphragm that integrates the diaphragm and voice coil. It is extremely light yet durable, and transmits large amounts of sound information (highly detailed sound) for a denser sound field. As a result, this tweeter delivers highs that are crisp and clear at all power levels.
Three-Way Mitered-Joint Construction for a Rigid Body
Yamaha‚¬„s excellence in woodworking is used to good advantage in the three-way mitered construction of the cabinet joints. This technique ensures extremely tight joints so the entire cabinet behaves as a single unit, providing tight bass reproduction.
Type 2-Way Acoustic Suspension Center Speaker System Woofers Dual 13cm Advanced cone Tweeter 3cm aluminium dome Frequency Response 60 Hz-50 kHz Nominal Input Power 40 W Maximum Input Power 160 W Sensitivity 89 dB Crossover Frequencies 5 kHz Impedance 6 ohms Dimensions (W x H x D) 500 x 170 x 170 mm Weight 7.0 kg/unit
All eligible company warranty and service support is being provided on Yamaha NS-C700 Center Speaker
