Yamaha YHT 1840 5.1-channel
Yamaha YHT 1840 Home Theater 5.1-channel package makes movie enjoyment easily accessible.
- 5-channel powerful surround sound
- 70 W per Channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
- 100 W per Channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
- 135 W per Channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
- Discrete amp configuration
- HDMI® (4 in / 1 out) with 4K Ultra HD full support (4K / 60p [4:4:4]), HDR Video and BT.2020
- Dialogue Level Adjustment for proper sound balance with dialogue and vocals
- Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
- Multi-language colour OSD capable of displaying cover art
- Compressed Music Enhancer
- Traditional design enhances any room
- ECO mode operation for about 20% less power consumption
Yamaha YHT 1840 home Theater YHT-1840 AV Receiver Amplifier Section Channel 5.1 Rated Output Power (1kHz, 1ch driven) 100 W (6 ohms, 0.9% THD) Rated Output Power (20Hz-20kHz, 2ch driven) 70 W (6 ohms, 0.09% THD) Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 135 W (6 ohms, 10% THD) Dynamic Power per Channel (8/6/4/2 ohms) - / 110 / 130 / 150 W Surround Sound Processing CINEMA DSP Yes DSP Programs 17 Dialog Level Adjustment Yes SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT) Dolby Digital Plus Yes Dolby Digital Yes Audio Features Compressed Music Enhancer Yes Adaptive DRC (Dynamic Range Control) Yes Initial Volume & Maximum Volume Setting Yes Audio Delay Yes (0-500 ms) 192kHz/24-bit DACs for all channels Yes (Burr-Brown) Video Features 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4) 4K Ultra HD Pass-through Yes HDMI 3D passthrough Yes HDMI Audio Return Channel Yes HDMI upscaling Yes (HDMI® to HDMI) Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes Connectivity HDMI Input/Output 4 / 1 (HDCP2.2, HDR and BT.2020 compatible) HDMI CEC Yes Digital Audio Input/Output: Optical 1 / 0 Digital Audio Input/Output: Coaxial 2 / 0 Analog Audio Input/Output 2 / 0 Preout SW Headphone Output 1 Tuner Section FM/AM Tuner Yes (FM only) User Interface On-screen display Yes (colour OSD) SCENE SCENE (4 sets) Remote Control Unit Yes General Standby Power Consumption (IR only) ≤0.3W Auto Power Standby Yes ECO mode Yes Dimensions (W x H x D) 435 x 151 x 315 mm; 17-1/8” x 6” x 12-3/8” Weight 7.4 kg; 16.3 lbs. Package Speaker Speaker System System Frequency Response 30 Hz–25 kHz Impedance 6 ohms (without subwoofer) Front Speaker Type Full-range bass-reflex Driver 7 cm (2-3/4”) full-range cone Nominal Input Power 30 W Maximum Input Power 100 W Sensitivity 83 dB / 2.83 V / 1 m Dimensions (W x H x D) 112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8” Weight 0.59 kg / unit; 1.3 lbs. / unit Center Speaker Type Full-range acoustic suspension Driver 7 cm (2-3/4”) full-range cone Nominal Input Power 30 W Maximum Input Power 100 W Sensitivity 84 dB / 2.83 V / 1 m Dimensions (W x H x D) 276 x 111 x 118 mm; 10-7/8” x 4-3/8” x 4-5/8” Weight 0.73 kg; 1.61 lbs. Surround Speaker Type Full-range bass-reflex Driver 7 cm (2-3/4”) full-range cone Nominal Input Power 30 W Maximum Input Power 100 W Sensitivity 83 dB / 2.83 V / 1 m Dimensions (W x H x D) 112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8” Weight 0.59 kg / unit; 1.3 lbs. / unit Subwoofer Type Full-range bass-reflex Driver 16 cm (6-1/2”) cone Nominal Input Power 30 W Maximum Input Power 100 W Dimensions (W x H x D) 290 x 292 x 315 mm; 11-3/8” x 11-1/2” x 12-3/8” Weight 5.8 kg; 12.8 lbs.

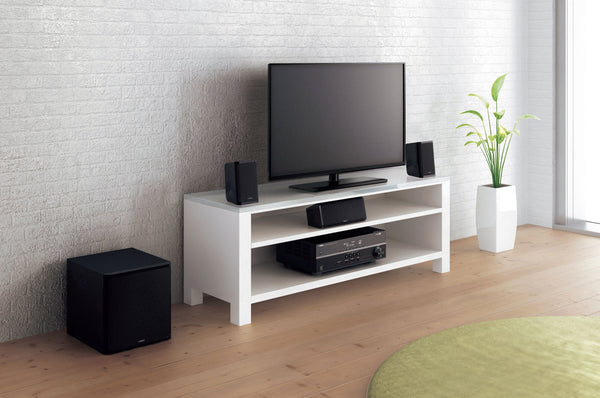

5.1-Channel Powerful and Dynamic Surround System
The AV receiver ensures that action movies with loud, dynamic soundtracks will be heard in spectacularly realistic surround sound. The front, surround and center speakers are high quality models capable of reproducing high definition audio, and the subwoofer delivers clean, crisply powerful bass. traditional design speakers enhance any room.
4K Ultra HD Full Support with 4K / 60p, HDCP2.2, HDR Video and BT.2020 pass-through
This AV receiver completely supports with latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video which provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. Furthermore it supports the wider colour gamut of BT.2020 pass-through. This AV receiver is also compatible with 3D, Audio Return Channel and CEC for easy operation.
Discrete Amp Configuration for High Sound Quality
This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should. Yamaha YHT 1840

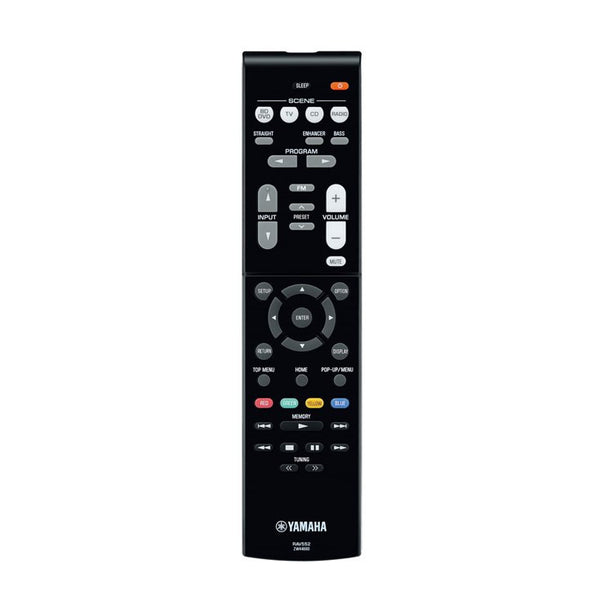

SCENE for One-Touch Start
Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
CINEMA DSP Yamaha YHT 1840
Yamaha’s exclusive CINEMA DSP technology provides natural and expansive sound imaging.
Virtual CINEMA FRONT Provides Virtual 5-channel Surround Sound with High Quality and Resolution Yamaha YHT 1840
Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 5-channel surround sound filled with realism, with only two front speakers. With Virtual CINEMA FRONT, you will enjoy virtual 5-channel surround sound with higher quality and resolution by installing surround speakers at the front. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.
Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
All eligible company warranty and service support is being provided on Yamaha YHT 1840 5.1-channel package
