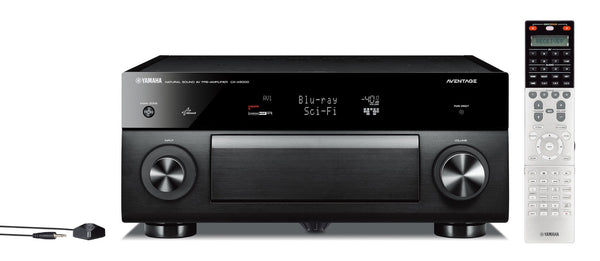

Yamaha CX-A5000 Aventage Concept 11.2-channel Pre-amplifier

Loading reviews...
Sold out
  • Yamaha CX-A5000 Aventage Concept 11.2-channel Pre-amplifier - Jamsticks

Yamaha CX-A5000 Aventage Concept 11.2-channel Pre-amplifier

Loading reviews...
Sold out
Add to Wishlist

Brand Warranty as Applicable, Usually delivered in 2-8 Business days

  • Yamaha 5000 CXA Aventage Concept 11.2-channel Pre-amplifier


    Product Descriptions:

      • AVENTAGE Concept 11.2-channel pre-amplifier
      • XLR balanced connection (11-channel pre-out and 2-channel input)
      • ESS 9016 DAC for all channels including front and rear presence channels
      • Cinema DSP HD3 with 33 DSP programmes
      • High density presence and richly detailed sound ensured by high sound quality parts and design
      • Specially designed high rigidity chassis eliminates the effects of vibration for greater sound purity
      • MHL supports full HD video and audio from mobile phones and portable devices
      • Network functions such as AirPlay, Napster®* music streaming service (*Music service availability varies by region.)
      • AV Controller app for operating various functions from a smartphone or tablet
      • FLAC or WAV 192kHz / 24-bit audio playback
      • 4K Ultra HD Pass-through and Upscaling
      • Yamaha video processing optimises video content
      • High-resolution Music Enhancer further heightens musicality from the original content
      • Advanced HDMI Zone Switching allows unprecedented AV switching to multiple zones
      • HDMI (8 in [1 on front] ) / 2 out) with 3D and Audio Return Channel
      • YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point / speaker angle measurement
      • Full LED Backlight Learning and Preset Remote Unit
      • Versatile Zone control up to four Zones including party mode
      • Handy trigger control


    • Surround Sound Processing CINEMA DSP Yes (HD3)
      DSP Programs 33
      Dialog Level Adjustment Yes
      Virtual Presence Speaker Yes (with Virtual Rear Presence Speakers)
      Dialogue Lift Yes (no presence speakers required)
      Dolby TrueHD Yes
      Dolby Digital Plus Yes
      Dolby Digital Yes
      Dolby Pro Logic IIx Yes
      DTS-HD Master Audio Yes
      Audio Features Pure Direct Yes (with video on mode)
      Compressed Music Enhancer Yes
      High-resolution Music Enhancer Yes
      YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control) and Angle measurement
      Adaptive DRC (Dynamic Range Control) Yes
      Initial Volume & Maximum Volume Setting Yes
      A.R.T. Wedge Yes
      Audio Delay Yes (0-500 ms)
      192kHz/24-bit DACs for all channels Yes (ESS) 192kHz/32-bit DACs for all channels incl. presence speakers
      Video Features 4K Ultra HD Pass-through and upscaling Yes
      HDMI 3D passthrough Yes
      HDMI Audio Return Channel Yes
      Component upconversion Yes
      HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
      Video adjustment Yes
      Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
      Connectivity HDMI Input/Output 8 (front 1) / 2 (assignable for zone 2 / 4)
      HDMI CEC Yes (SCENE, Device Control)
      MHL Support Yes
      USB Input iPod / iPhone / iPad, USB Memory, Portable Audio Player
      Network Port Yes
      AirPlay Yes

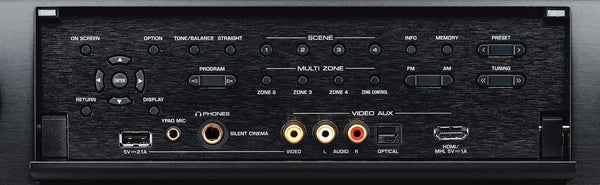

      Front AV Input HDMI (MHL support) / USB / Analogue Audio / Optical / Composite
      DC Out Yes
      Digital Audio Input/Output: Optical 4 (front 1) / 1
      Digital Audio Input/Output: Coaxial 3 / 0
      Analog Audio Input/Output XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 1
      Phono Input Yes
      Component Video Input/Output 4 / 1
      S-Video Input/Output 4 / 1
      Composite Video Input/Output 5 (front 1) / 1
      Multi-Channel Input 8ch
      Preout XLR Balance: 11ch, RCA Unbalance: 11.2ch
      Headphone Output 1
      Tuner Section FM/AM Tuner Yes
      User Interface On-screen display Graphical User Interface
      SCENE SCENE PLUS (12 sets)
      App Control Yes (iPhone / iPad / Android phone / tablet)
      Web Browser Control Yes
      Remote Control Unit Yes (Preset, Learning, Macro, Full LED Backlight)
      Zone Control Zone 2 Audio Output Preout / HDMI
      Zone 3 Audio Output Preout
      Zone 4 Audio Output HDMI
      Zone Video Output HDMI / Component / S-Video / Composite
      Zone HDMI Yes (Advanced HDMI Zone Switching)
      Zone B Output HDMI
      Zone GUI Yes
      RS-232C Interface Yes
      +12V Trigger Output 2
      Remote (IR) Input/Output 2 / 2
      Party Mode Yes
      General Standby Power Consumption (IR only) °¤0.3W (typical)
      Auto Power Standby Yes
      Dimensions (W x H x D) 435 x 192 x 448 mm; 17-1/8‚¬? x 7-1/2‚¬? x 17-5/8‚¬?
      Weight 13.6 kg; 30 lbs.

    All eligible company warranty and service support is being provided on Yamaha CXA5000 Aventage Concept 11.2-channel Pre-amplifier
