    Product Description

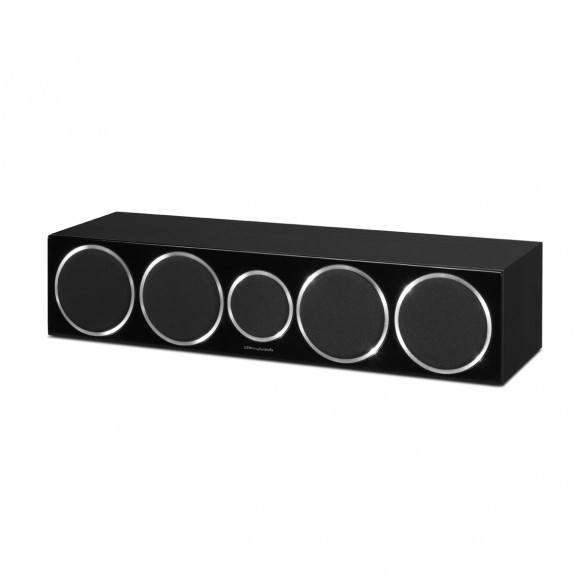

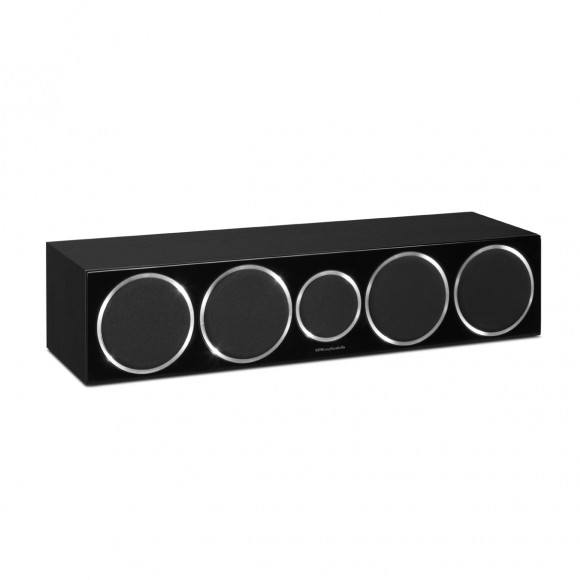

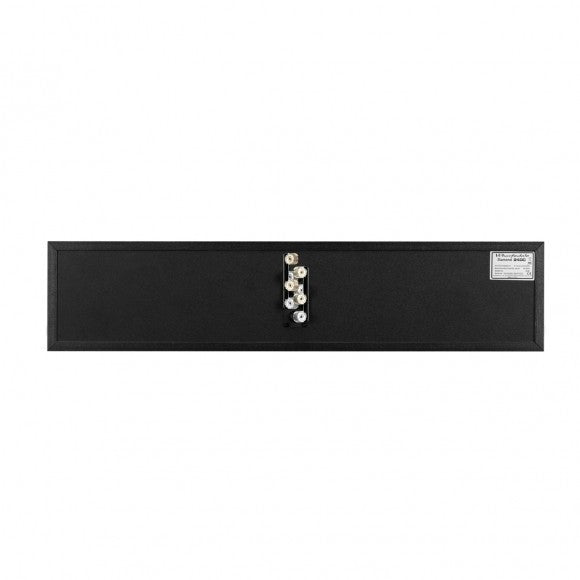

    Diamond 240C 2-way Centre Speaker

    The Diamond 200 boasts the latest in hi-fi technology to produce a throughly enjoyable listening experience. Semi-elliptical 'break-up' areas on the woven-kevlar woofer smooth the response through the audible range and the cone edges are treated with a unique diamond pattern moulding.

    The treble unit uses a sheer fabric dome and advanced ferrite magnet system, surrounded by a carefully crafted wave guide that encourages outstanding midrange performance too.

    Cabinet walls and internal bracing developed use Wharfedale's latest 'Virtual Speaer' software, with the help of Delayed Cumulative Spectral Analysis that ruthlessly reveal panel colouration in all its forms. Using this technique engineers updated the cabinet, combining layers of particle board and MDF, bonded in a unique structure to damp annoying High-Q resonances and block internal sound leakage. The effect is that the 'noise' from cabinet walls is buried more than 35dB below the driver output. The same computer modeling is also used to fine tune the crossover to guarantee an enjoyable experience, both on and off-axis.

    Exiting the base of the speaker cabinet is a slot loaded distributed port created by the plinth. This equalises the air pressure to mimic that inside the cabinet allowing a smooth transition between the pressure variation in the cabinet and the low frequency sound developed in the room.

    Aside from computer assisted modelling, and true to Gilbert Briggs' ethos behind his original Wharfedale loudspeaker designs, hours of listening tests by our engineers are carried out to fine tune each speaker in the series.

    Specification

    General description 2-way centre speaker
    Enclosure type bass reflex
    Transducer complement 2-way
    Bass driver 130mm Woven Kevlar Cone x 4
    Treble driver 25mm Soft Dome
    AV shield Yes
    Sensitivity (2.83V @ 1m) 90dB
    Recommended amplifier power 25-200W
    Peak SPL 95dB
    Nominal impedance 8Ω Compatible
    Minimum impedance
    Frequency response (+/-3dB) 50Hz ~ 20kHz
    Bass extension (-6dB) 45Hz
    Crossover frequency 2.1kHz
    Cabinet Volume (in litres) 20.9L
    Dimensions (mm) -
    Height (on plinth & spikes) (174+16)mm
    Width 800mm
    Depth (with terminals) (236+28)mm
    Carton size 890*330*280mm
    Net weight 14.5kg/pcs
    Gross weight 16kg/ctn
