    Product Description

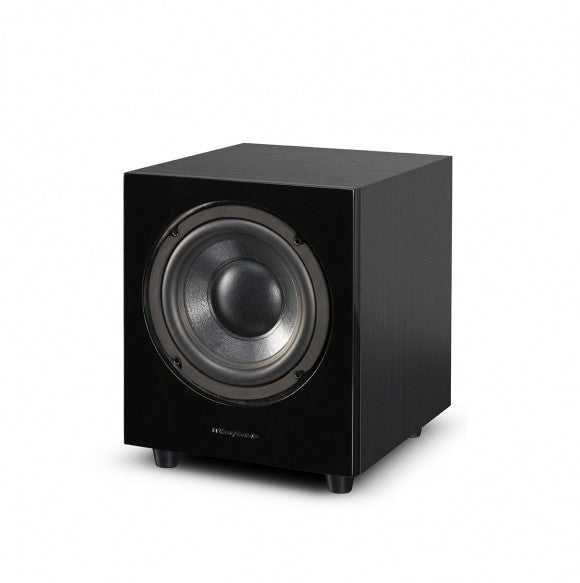

    D8 Subwoofer

    The addition of a sub-woofer will add weight and authority to any stereo system, extending the frequency response much further than conventional bass drivers. With Wharfedale subwoofers, the built-in amplifiers are engineered to provide a powerful response at these frequencies, while a continuously variable crossover provides seamless integration with the other speakers in the system. All models offer a phase adjustment for the additional matching of the sound.

    In a multi-channel system, a sub is recommended to handle the ‚¬˜LFE‚¬„ or Low Frequency Effects channel of Dolby Digital or DTS sound. The PowerCube provides the impact and dynamics to really bring the soundtrack to life without ever sounding boomy or woolly.

    Wharfedale are proud to release a new series of active subwoofers. Utilising technology honed in the popular WH-S8 an WH-S10, the new D8 and D10 subwoofers are the perfect way of enhancing your stereo or home system to produce excellent low end performance

    The cabinet construction of the new D8 has been aestetically enhanced, with new high-gloss lacquered front baffles and cosmetically enhanced veneers. Not only is this a significant improvement, the new look is designed to match perfectly with the new and award winning Diamond 200 series, which is already gaining outstanding reviews internationally.

    Aside from newly improved aesthetics, the two new subwoffers are built to elecate the performance of any AV setup. The D8 features an active feflex subwoofer system in a vented box allowing it to pack speed, punch and excellent low frequency extension.


    • Low pass filter slope continuously adjustable from 40Hz - 150Hz
    • Phase invert switch
    • Low frequency bass extension (below 30Hz), with a wide 86dB dynamic range
    • Low lefel inputs, dedicated LFE input
    • Auto power sensor


    Description/Format Active Dynamic-Drive IB subwoofer system
    Drive Units 1 x 8" (200mm) cone long-throw
    Frequency Response (+/-3dB) 40Hz - 120Hz
    Amplifier Power Output 70W
    Peak Power Output 150W
    Line Input Sensitivity 100mV for maximum output
    Crossover Range 40Hz - 150Hz
    Inputs Stereo Line In (2 x RCA Phono)
    Mono (LFE) Line In (RCA Phono)
    Signal-to-noise ratio (S/N) 85dB
    Avg. Max Output @1m 105dB
    Features Low pass filter slope adjustment
    Phase inversion
    Auto on/off
    Dimensions (H x W x D) 298mm + (30mm) x 268mm x 300mm (+22mm)
    Net weight 7.5kg
    Gross weight 9.1kg
    Accessories IEC power cord, spikes as standard

    All eligible company warranty and service support is being provided on Wharfedale D8 Subwoofer
