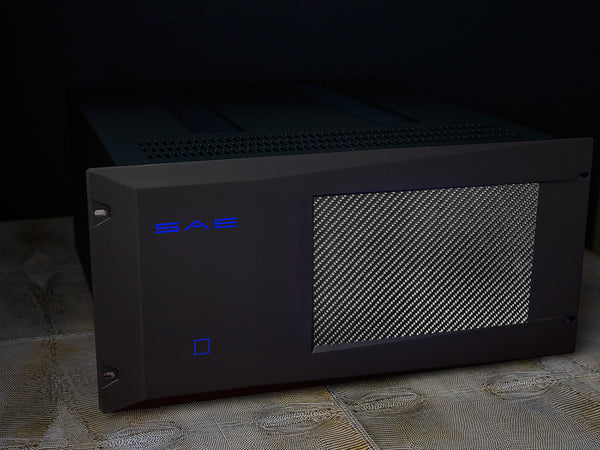

SAE 2HP-D Power Amplifier
Power so prodigious that we can measure it in horsepower!
The revolutionary SAE 2HP amplifier is capable of over 746 watts or 1 horsepower per fully differential ‚¬œpush / pull‚¬? channel @ 1kHz in it‚¬„s 5RU chassis (rack-mounted or free standing).
The world-renowned engineers at SAE achieved an industry leading >128dB of signal to noise ratio for one simple reason‚¬¦at SAE we want you to hear your recordings‚¬¦not the amplifier.
The fully balanced, Class A/B SAE 2HP amplifier masterpiece is designed, engineered, and manufactured in America.
Analog Audio Inputs One Balanced (XLR) jack per channel Input Impedance 47 kOhms. Balanced for each phase Input Sensitivity 2.82V RMS input for 600W into 8 ohms Gain 27.8 dB Polarity Balanced; Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output Speaker Outputs WBT Low-Mass Binding posts 4 per channel; One 4-Pole Speakon connector per channel Modes /Process Standby: Amplifier is ready to be turned on via front panel switch or remote trigger. Overcurrent, D.C., and/or thermal protection: Amplifier will cycle. Catastrophic D.C. or output stage failure: Amplifier will shut down. Power Output
Per Channel, All Channels Driven 8 ohms 4 ohms 2 ohms
20 Hz-20 kHz, < 0.01% THD 600 WRMS 1200 WRMS 1200 WRMS
1 kHz, 0.01% THD, (Watts) 746 WRMS 1350 WRMS 1350 WRMS
1 kHz, 0.01% THD, (HP) 1 HP 1 ¾ HP 1 ¾ HP
1 kHz, 1% THD 860 WRMS 1400 WRMS 2000 WRMS
CEA 2006 1 kHz Burst Power 1100 WRMS 2000 WRMS 3400 WRMS
THD + N, 20 Hz‚¬?20 kHz 0.01% 0.01% 0.01%
THD + N at 1 kHz
At Rated Power 0.005% 0.006% 0.008%
At 10W 0.0015% 0.003% 0.003%
Intermodulation Distortion (SMPTE or Twin-tone) Less than 0.01% Frequency Response +0, -3dB, 5 Hz to 150 kHz, 8 Ω Damping factor >600 at 100 Hz; Signal to noise ratio 128 dB referenced to rated output (A-Weighted) Slew rate >60V per microsecond Crosstalk > 110 dB Power Requirements 117V AC; 230V; 50/60 Hz Power Consumption Less than 1W x 2 at Standby; 1800W maximum x 2 Trigger Input 3-24 VDC; Steady State Dimensions (W x H x D) 19‚¬? x 8¾‚¬? x 20‚¬? add 1‚¬? for feet and 1½‚¬? for connectors; 483 mm x 222mm x 508 mm Add 25.4mm for feet and 38mm for connectors Weight 98.5 lbs.; 44.8 kG
All eligible company warranty and service support is being provided on SAE 2HP-D Power Amplifier
