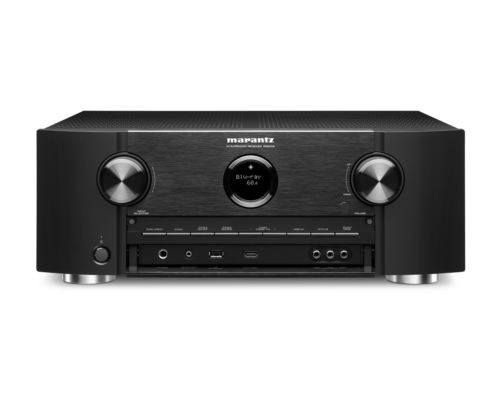

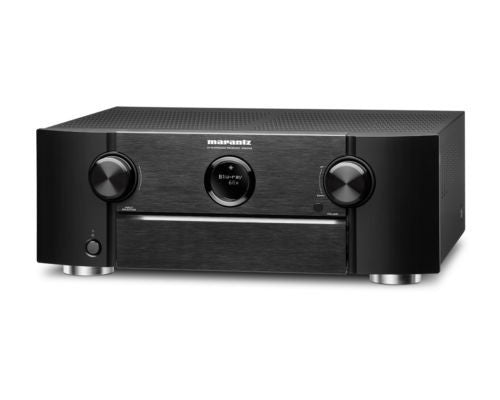

Marantz SR-6009 7.2Ch AV Receiver

Loading reviews...
Sold out
  • Marantz SR-6009 7.2Ch AV Receiver - Jamsticks

Marantz SR-6009 7.2Ch AV Receiver

Loading reviews...
Sold out
Whatsapp
Add to Wishlist

Brand Warranty as Applicable, Usually delivered in 2-8 Business days

  • Marantz SR-6009 7.2Ch AV Receiver

    Product Description

    Product Description:

    7-Channel Discrete Amplifier:The Marantz SR6009 is equipped with a power amplifier that reproduces high-fidelity sound in surround mode with equal quality and power for all channels, true to the original sound. The power amplifier circuit adopts a discrete-circuit configuration that achieves high-quality surround sound reproduction. The 7 channel amplifier is rated at 110 watts with 2 channels driven (20-20kHz, 8-ohms, 0.08% THD).

    Amplifier Assignment:The SR6009 supports up to 7.1 channels (Front L/R, Center, Surround L/R, Surround Back L/R, and SW) for surround playback defined by the Blu-ray disc format. The seven amplifier channels built into the receiver are typically used for 7.1 channel surround in the main room, but there are various amplifier configurations to accommodate your home theater setup:

    Specifications:

    Multichannel Surround

    • DTS HD Master / DTS ES / DTS96/24
    • DTS Neo:X (7ch)
    • Dolby True HD / Dolby Digital EX / ProLogic IIx
    • Audyssey DSX
    • Dolby ProLogic IIz
    • Multichannel Stereo
    • Max Number of Processing (Preamp) Channels: 7.1

    Sound Enhancements

    • Discrete Power Amplifier
    • Current Feedback Topology
    • Hyper Dynamic Amplifier Modules (HDAM)
    • Pure Direct
    • High Grade Audio Components
    • Audyssey: MultEQ XT(Pro Ready)
    • Audyssey Dynamic EQ / Dynamic Volume
    • Compressed Audio Enhancer: MDAX2

    Network

    • DLNA Certified: v1.5
    • Lossy Formats: MP3 / WMA / AAC / FLAC / ALAC / WAV / FLAC HD 192/24 / WAV 192/24 / ALAC 96/24 / AIFF 192/24
    • DSD Audio Streaming
    • Gapless Playback: FLAC, WAV, AIFF, ALAC, DSD
    • Photo Streaming (JPEG)
    • AirPlay Audio Streaming
    • Windows PlayTo / Windows 8 Certified
    • Internet Radio (vTuner)
    • Spotify
    • Compatible with Remote App for Smart Phones: Android / iOS
    • Compatible with Remote App for Tablets: Android / iOS
    • Ethernet Ports
    • WiFi
    • Bluetooth

    HDMI

    • HDMI Inputs (Back/Front): 7 / 1
    • HDMI Outputs Main/Zone : 1 / 1
    • Video Conversion Analog -> HDMI
    • Analog to HDMI Scaling: up to 4K 50/60 Hz
    • HDMI to HDMI Scaling: up to 4K50/60 Hz
    • GUI Overlay on HDMI
    • 3D Signal Pass-Through
    • 4K Signal Pass-Through / Scaling / GUI Overlay
    • HDMI Pass-Through in Standby Mode
    • Picture Adjust / Noise Reduction
    • CEC
    • DSD Audio Capability
    • Audio Return Channel
    • Auto LipSync

    Multi-Room/CI

    • Multi-Room Zones: 2
    • Zone Audio Source: HDMI (2ch) / Optical, Coaxial (2ch) / Network / USB / Analog
    • Zone Audio Output: Speaker / Preout
    • IP Control / RS232 Control / Web Control / App Control
    • IR Flasher in
    • Marantz Remote Bus
    • DC Trigger Output: 1

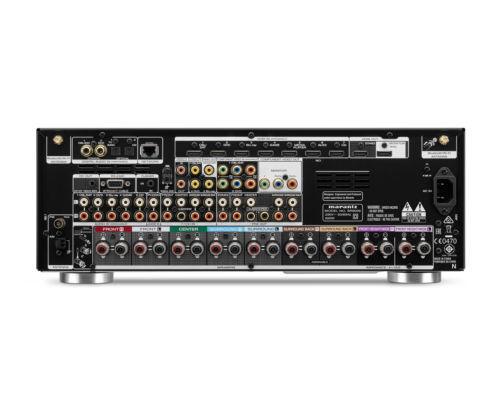

    Inputs/Outputs

    • Video
      • Composite In/Out: 3+1 / 1
      • Component In/Out: 2 / 1
      • HDMI In/Out: 7+1 / 2
      • Multi-Room Video Out: HDMI
    • Audio
      • Analog In: 5+1
      • Digital In for Optical/Coaxial: 2 / 2
      • Multi-Room Out for Analog: 1
      • Multichannel Pre Out: 7.2
      • Subwoofer Out: 2
      • 7.1 Multichannel Input
    • Other
      • Speaker Terminal: Regular Screw
      • Number of Speaker Terminals: 9
      • Speaker A/B: assignable
      • Bi-Amp Drive: assignable
      • Multi-Room Speaker Terminal: assignable
      • Front Inputs: Audio / Composite / HDMI / USB
      • USB Audio / Made for iPod / Made for iPhone
      • AM/FM Tuner

    Specifications

    • Number of Poweramps: 7
    • Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 110W
    • Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 150W
    • Power Output (6 ohm, 1 kHz, 1% 1ch Drive): 185W
    • 70% Guarantee
    • FM Tuner with RDS

    General

    • System Remote Control: RC025SR
    • Metal Front Panel
    • Power Consumption in W: 650
    • Power Consumption No-Sound (ECO on/off) in W: 50 W / 80 W
    • Standby Consumption in W: 0.2
    • CEC Standby Consumption in W: 0.5
    • Network Standby Consumption in W: 2.7
    • Dimensions (W x D x H) in mm: 440 x 161 x 398
    • Weight: 11.4 kg (24.7 lbs)

    All eligible company warranty and service support is being provided on Marantz SR-6009 7.2Ch AV Receiver
