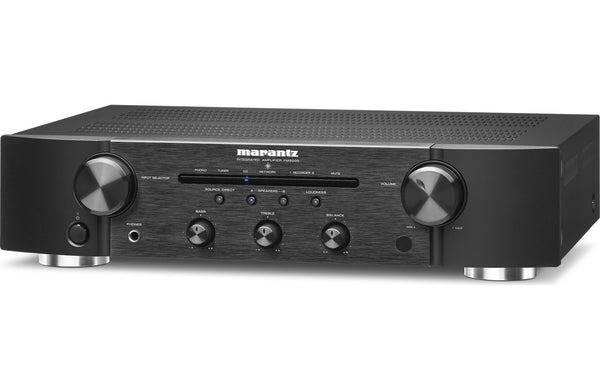

Marantz PM-5005 Integrated Amplifier

Loading reviews...
Sold out
  • Marantz PM-5005 Integrated Amplifier - Jamsticks

Marantz PM-5005 Integrated Amplifier

Loading reviews...
Sold out
Whatsapp
Add to Wishlist

Brand Warranty as Applicable, Usually delivered in 2-8 Business days

  • Marantz PM-5005 Integrated Amplifier



    Marantz PM5005

    Product Descriptions:

    Featuring premium audiophile design at an affordable price, the Marantz PM5005 stereo integrated amplifier features all-analog circuitry from input to output, and delivers wide frequency response, high dynamic range along with true low impedance drive capability and is rated to handle both 8 ohms and 4 ohms speakers.

    Featuring current feedback power amplifier circuitry (a Marantz innovation), the power amplifier section also features pure discrete analog circuitry along with multiple high current discrete power output devices that are easily able to handle lower impedance loads and deliver high instantaneous peak current capability.

    Rated at 40 watts per channel into 8 ohms and 55 watts per channel into 4 ohms, the PM5005 features A and B speaker outputs, for two sets of stereo speakers, or for bi-wiring with compatible stereo speakers.

    The deluxe remote control provides discrete source input buttons, and includes additional buttons for direct control of the matching Marantz CD5005 player and Marantz Network Audio Players.


    Current Feedback Discrete Power Amplifier

    The Marantz PM-5005 features a power amplifier section based on our renowned current feedback technology, a Marantz innovation that debuted on our very first power amplifier. High current discrete power output devices mounted on a generously-sized aluminum heat sink together provide high instantaneous peak current capability, and are easily able to handle dynamic bursts into lower impedance 4 ohm speaker loads (the current capacity for each amplifier channel is a substantial 16 amps).


    Wide Range of Connectivity Options



    Veteran audiophiles and new generation music lovers both know that the sonic allure of vinyl records often can't be matched by digital audio sources, and the Marantz PM-5005 includes multiple analog inputs including a MM (moving magnet) phono input.

    There are also dual recording inputs and outputs, along with a headphone amplifier jack on the front panel, and the high grade speaker connectors can accept multiple speaker cable termination types.

    The audio input and output jacks are all gold plated for maximum signal integrity.

    Source Direct Function

    To ensure the shortest signal path and the highest fidelity, the PM5005 features our Source Direct function, which bypasses the tone control and loudness control circuitry.


    Discrete amp

    Fully Discrete Volume Amplifier Circuit

    The volume amplifier circuit features fully discrete circuitry (no op amp chips in the signal path) for the widest bandwidth, lowest distortion, and highest dynamic range.


    Elegant Remote Control

    The elegant remote control includes additional function buttons that let you control a Marantz CD player and a Marantz Network Audio Player, for total system control with a single remote.


    Versatile Remote Control Options

    The Marantz PM-5005 features remote control input and output jacks that let you hard wire the amplifier directly to a Marantz CD player, which in turn can be hard wired to a Marantz Network Audio Player.

    For example, you can place a Marantz CD player on an open shelf for easy access, and place the PM5005 and a Marantz Network Audio Player tucked away in a cabinet and hidden from view, and control all 3 units with a single remote, which helps to eliminate component clutter.


    60+ Years of Audiophile Heritage

    Founded in 1953, Marantz has a long and rich history of designing audiophile components that have been embraced by music lovers and critical listeners around the world. Because Music Matters so much in our lives, the PM5005 carries on our long tradition of delivering a superlative music listening experience.

    The Marantz PM 5005 Integrated Amplifier is the first in its class to offer current feedback architecture, a feature that normally is reserved for more expensive amplifier models. This technology provides very fast and accurate signal handling, resulting in perfectly balanced stereo sound reproduction as well as a very open and precise sound stage. The PM5005 has also been enhanced with performance optimizing discrete audio circuitry and fine-tuned internal components. The Marantz PM5005 Amplifier offers 40W per channel into 8 ohms or 55W into 4 ohms, and includes a metal chassis and a front metal panel to ensure a very rigid and solid base.

    Specifications:

    Features:

    Channels

    2

    Current Feedback Topology

    Phono EQ: Standard

    HDAM version

    SA3, SA2

    EI Power Transformer

    High Grade Audio Components

    Balance / Bass / Treble / Loudness

    • / • / • / •



    Others:

    Linear Drive Power Supply

    Source Direct

    Standby Mode

    Marantz PM5005



    Inputs/outputs:

    Audio Inputs

    6

    Phono Input: MM

    Audio Outputs

    2

    Gold Plated Cinch

    Speaker A / B

    Speaker Terminal

    Transparent, Screw type

    Number of terminals

    4

    D.Bus

    Headphone Out



    Specifications:

    Power Output (8 / 4 Ohm RMS)

    40 W / 55 W

    Frequency response

    10 Hz-50 kHz

    Total Harmonic Distortion

    0.01 %

    Damping Factor

    100

    Input Sensitivity: MM

    2.2 mV / 47 kOhm

    Signal to Noise Ratio: MM

    83 dB

    Input Sensitivity: High level

    200 mV / 20 kOhm

    Signal to Noise Ratio: High level

    103dB (2V input)



    General:

    Metal Front Panel

    Power Consumption

    350W

    Standby Consumption

    0.3 W

    Auto Power off

    Detachable Power Cable

    Remote Control

    RC002PMCD

    System Remote Function

    Maximum Dimensions (W x D x H) in inches

    17.32 x 14.57 x 4.13 in.

    Weight in lbs.

    14.77 lbs.

    All eligible company warranty and service support is being provided on Marantz PM-5005 Integrated Amplifier.
