LUXMAN L-550AXII Integrated Amplifier
L-550AXII Integrated Amplifier
L-550AXII is a Mark 2 model of L-550AX which launched in 2011. L-550AXII makes its debut featuring a high-precision electric controlled attenuator LECUA and the latest version of proprietary high sound quality feedback circuit ODNF4.0, both are used in LUXMAN‚¬„s upper range amplifiers.

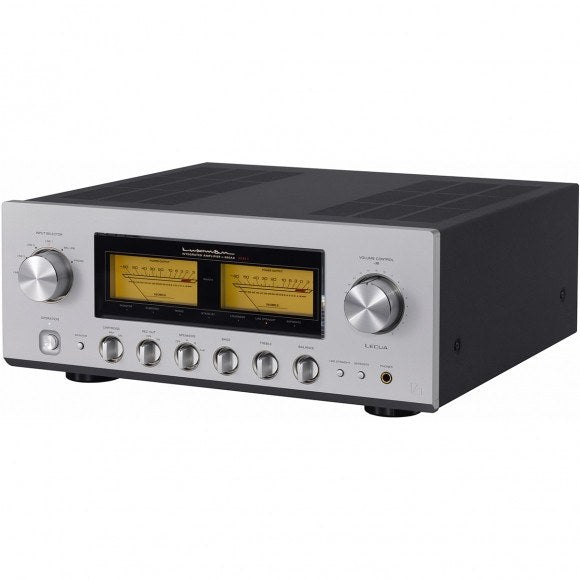

Keeping the symbolic appearance with traditional pointer-type meters on the front panel, the essence of the expressive power that made a huge step forward whilst developing the flagship integrated amplifier L-590AXII was poured into this model to provide its dense expression particular to pure A class sound and more detailed reproduction of the low range.SPECIFICATIONS

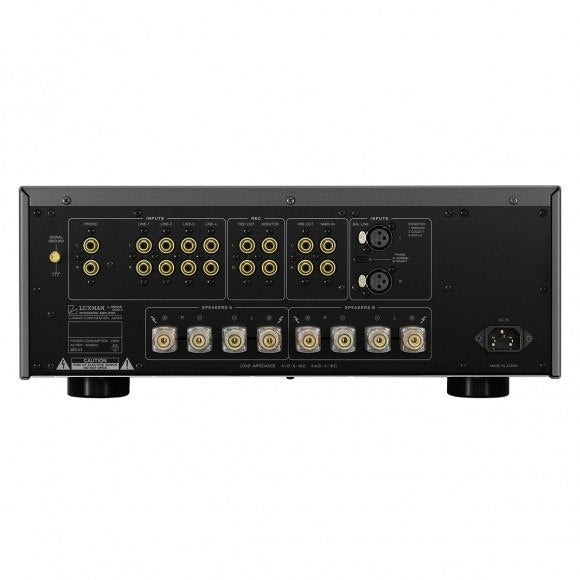

Item Value Rated output 20W + 20W (8Ω), 40W + 40W (4Ω) Input, recording input and output line x 4, phono 1 (MM / MC switching), balanced line x 1, recording input and output x1, separate input separate input and output: and output x 1- speaker output A / B 2 system (AB simultaneous can be output) Amplifier circuit, output configuration ODNF4.0, bipolar parallel push-pull Input sensitivity / input impedance PHONO (MM): 2.5mV / 47kΩ, PHONO (MC): 0.3mV / 100Ω, LINE: 180mV / 47kΩ Total harmonic distortion less than 0.007% (1kHz / 8Ω), 0.02% (20Hz ~ 20kHz / 8Ω) S / N ratio, frequency characteristic LINE: 105dB or more, 20Hz ~ 100kHz (+ 0, -3.0dB) Power consumption 230W, 170W (when there is no signal), 0.4W (standby) Dimensions, (WxHxD) 440 × 178 × 454 mm (front knob 20, including the rear terminal 27) Weight 24.3kg
All eligible company warranty and service support is being provided on LUXMAN L-550AXII Integrated Amplifier
