    Product Description

    Description:

    The refined integration of the C7R DAC Integrated Amplifier has features that enhance both operation and performance, designed with REF power filtration for a more musical and detailed sound.

    • 5 Digital Inputs
    • Analog In/Line Out
    • MM Phono Stage
    • Reference Power Filtration
    • Programmable Display
    • Analog FM Tuner
    • Quality Headphone Ouput
    • 24/96 USB1.1 Input
    • Remote Control
    • Available in Silver or Black Faceplate

    Specifications:

    Amplifier Section:

    Power Output: 150W 4 ohms, 75W 8 ohms per channel
    Minimum Load: 3 ohms per channel
    Peak Output Current: 30 amperes
    Frequency Response: +/-3 dB 1.5Hz-90KHz, 4 ohm load
    THD+N: 0.003% 1W, 1KHz, 4 ohms
    IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
    Output Noise: <50uVRMS A-weighted 10Hz-20kHz
    Damping factor: >1000
    Output Impedance at 100Hz: <8 milliohms
    Dynamic Range: 115dB

    Digital Inputs:

    Maximum Data Input Rate
    24bit Data at 192KS/s: SPDIF RCA x2, TOSLINK x2
    24bit Data at 96KS/s: USB

    Analog Inputs:

    Line in impedance: 11 Kohms
    Phono in impedance: 47 Kohms//150pF
    Phono in sensitivity: 2.5mV - 7mV nominal cartridge output range
    Phono accuracy: +/-0.25dB, 50Hz-15kHz

    General:

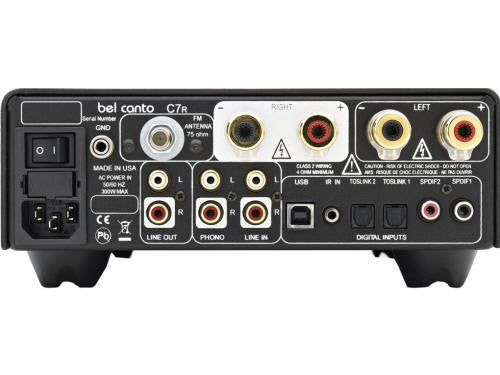

    Output connections: 2-sets of WBT Next Gen Binding Posts, RCA Line Out, Headphone Output
    Headphone Output Current and Voltage Level: 300mA peak at 4Vrms
    Line Out Impedance: 100 ohms
    Power On usage: 14W
    Power Off usage: 0.0W
    Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
    Size: 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D)
    Weight: 13lbs, 6.5Kg

    FM Section:

    Input Frequency Range: 76-108 MHz
    Sensitivity with 75 ohm input: 1.1uV EMF (S+N)/N=26dB
    Input IP3: 105 dBuV |f2 ? f1| > 1 MHz; f0 = 2 x f1 ? f2
    Adjacent Channel Selectivity: 50 dB +/- 200KHz
    Alternate Channel Selectivity: 70 dB +/- 400KHz
    Frequency Response: 30Hz-15Khz -3dB
    S/N: >63dB
    THD: <0.1%

    All eligible company warranty and service support is being provided on Bel Canto Design C7R AV Receiver
