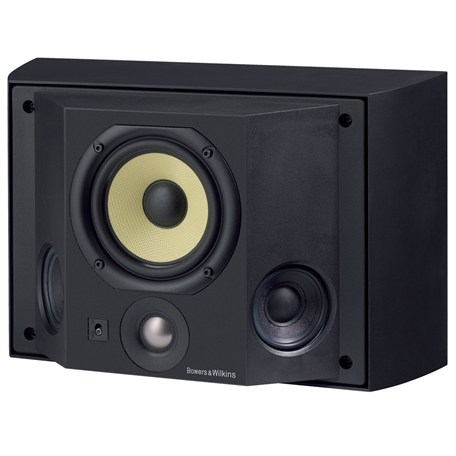

B&W DS3 Di-Pole Surround Speaker

Loading reviews...
Sold out
  • B&W DS3 Di-Pole Surround Speaker

B&W DS3 Di-Pole Surround Speaker

Loading reviews...
Sold out
Whatsapp
Add to Wishlist

Brand Warranty as Applicable, Usually delivered in 2-8 Business days

  • PRODUCT DESCRIPTION

    For large home theatre installations, choose a pair of rear speakers that can get you closer to the true surround sound of the cinema.

    The DS3 is a wall-mounted surround speaker that can operate in what’s called ‘dipole’ mode, to create an authentic all-enveloping effect of the auditorium in a large space. Or, you may prefer to switch to conventional ‘monopole’ operation, in which the sound from side or rear is more precisely located and less diffuse. The choice depends on the room conditions, the size of the audience and the kind of material on view.

    Whichever mode you select, the sound quality is superlative, supplied by a 130mm Kevlar® cone bass/midrange, twin midrange/high frequency units and a Nautilus™ tube-loaded tweeter.



    SPECIFICATION



    Woven Kevlar

    Yes

    Crossover Tuning

    Yes

    Nautilus Tapering Tube

    Yes

    Flowport

    Yes

    Technical features

    Nautilus™ tube loaded aluminium dome tweeter

    Kevlar® brand fibre cone bass/midrange

    Description

    2-way closed-box selectable dipole/monopole surround system

    Drive units

    1x ø25mm (1 in) aluminium dome high-frequency

    2x ø80mm (3 in) midrange / high frequency

    1x ø130mm (5 in) woven Kevlar® cone bass / midrange

    Frequency range

    -6dB at 63Hz and 42kHz (monopole mode)

    -6dB at 63Hz and 15kHz (dipole mode)

    Frequency response

    85Hz – 22kHz ±3dB on reference axis (monopole mode)

    85Hz – 10kHz ±3dB power averaged over front hemisphere (dipole mode)

    Dispersion

    Monopole mode: within 2dB of reference response

    Horizontal: over 40º arc

    Vertical: over 10º arc

    Dipole mode: horizontal figure of eight

    Effective null zone ±20º (250Hz – 15kHz)

    Sensitivity

    89dB spl (2.83V, 1m)

    Harmonic distortion

    2nd and 3rd harmonics (90dB, 1m)

    Nominal impedance

    8Ω (minimum 3.3Ω)

    Crossover frequency

    250Hz (dipole mode)

    Crossover Filters

    2nd Order – midrange / high frequencyt

    2nd Order – bass

    Recommended amplifier power

    25W – 100W into 8Ω on unclipped programme

    Max. recommended cable impedance

    0.1Ω

    Dimensions

    Height: 249mm (9.8 in)

    Width: 387mm (15.25 in)

    Depth: 186mm (7.3 in)

    Net weight

    5.2kg (11.5 lb)

    Finishes

    Black



    All eligible company warranty and service support is being provided on B&W DS3 Surround Speaker.
