Powersound Audio 15S Subwoofer
Product Description
Descriptions:
- Proprietary, 15" high excursion driver with powerful motor strength and efficiency.
- Patented digital ICEpower® 725W amplifier with DSP control
- CNC precision cut cabinets that are finished in our industry exclusive satin black texture
- 19Hz-200Hz +/-3dB (7Hz-14Hz typical in-room extension)
- Ultra-low bass (20-31.5 Hz): 114.0dB
- Low bass (40-63Hz): 124.4dB
Specifications:
Driver - Power Sound Audio proprietary 15‚¬? driver
- High excursion capabilities (2" peak to peak)
- Extended and vented pole geometry
- Vented back plate to maximize air flow
- Double stacked 80oz. ferrite magnets
- Extremely linear and dynamic motor system
- Highly treated, Kevlar-reinforced rigid paper cone body
- Paper dust cap with acrylic coating
- Epoxy reinforced cone neck/apex joint
- Concentric foam surround, treated for longevity
- Die-cast, twelve spoke, rigid aluminum frame with under spider cooling vents
- Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
- Fatigue limiting designed, silver alloy lead wires
- Single poly cotton semi-progressive, high excursion spider
- Assembled in the USA

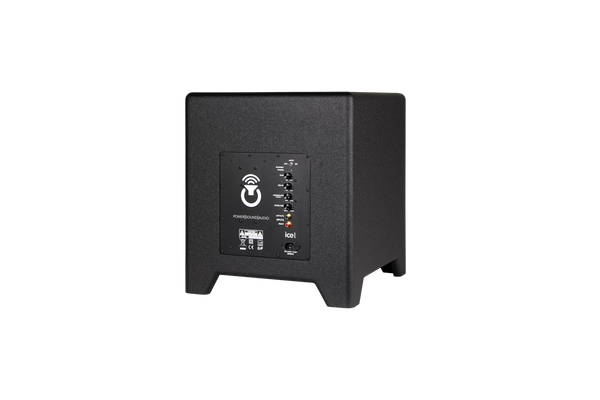

Amplifier Specifications - ICEpower® audio technology
- Amplifier Power: 725 watts
- Inputs: Left and Right RCA inputs
- On, Auto, Off selector
- Gain control
- Time delay(phase) control
- Crossover control
- Room size control
- Custom DSP(digital signal processing) enables superior engineering refinement
- CE and FCC approved; EMC and safety pre-approved
- Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
- Patented HCOM modulation and control techniques for unparalleled audio accuracy
- Sound optimized soft clipping
- Soft start power up with mute/de-mute.
- Thermal and over-current protection
- Standby converter with low standby power consumption (less than 1 watt)
- Universal mains operation (100-240 V, 50-60 Hz)
- Standby power consumption 170 mW @ 230 V
- ErP (1275/2008/EC) compliant
- Energy Star®v3.0 compliant
- 117 dBA dynamic range
- THD+N = 0.005 % @ 1 W (4 ¦, 1 kHz)
- THD+N = 0.0008 % @ 50 W (4 ¦, 100 Hz)
- CCIF IM distortion = 0.0003 %, 10 W, 4 ¦, 18.5 kHz / 1 kHz
- High output current limit of 30 A
Enclosure - Sealed enclosure
- Down-firing driver
- Super durable, black sand textured finish
- Precision machined CNC panels for perfect fit of all components
- Rigid MDF baffles
- Dimensions (D x W x H): 18‚¬? x 17.25‚¬? x 19.5‚¬?
- Weight: 64lbs
- Made in the USA
